BL4235 B4235M 42mm inner rotor bldc brushless dc motor with driver
Size: φ42.0* 35.0mm
Built-in driver
PWM pulse wide speed range
Clockwise/counter-clockwise rotation
FG speed feedback signal
Low EMC
Low noise
Long life: 20000hrs Min.
Over-current protection
Over-voltage protection
Under-voltag
Specifications:
Size: φ42.0* 35.0mm
Built-in driver
PWM pulse wide speed range
Clockwise/counter-clockwise rotation
FG speed feedback signal
Low EMC
Low noise
Long life: 20000hrs Min.
Over-current protection
Over-voltage protection
Under-voltage protection
OEM and ODM orders are welcome
The design can be customized
Applications:
Personal care, home application, industry apparatus, business equipment, and medical apparatus
Samples can be sent on your request.

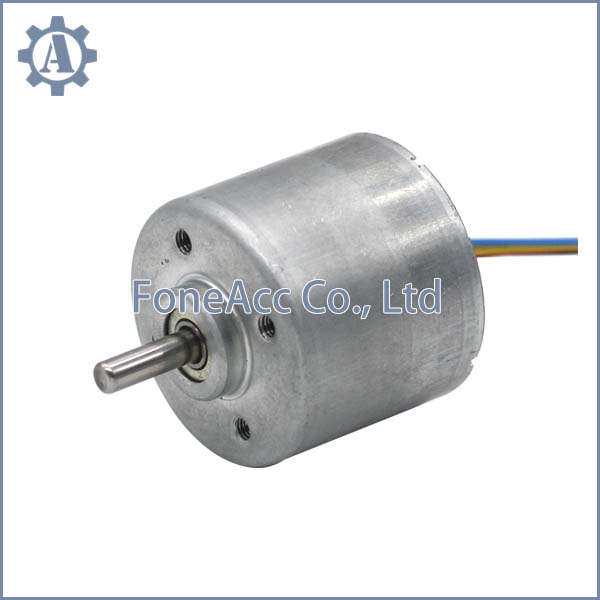

image of BL4235 motor
|
BL4235, BL4260, BL4275
|
Output Power: 5W~60W | Weight: 160g ~ 330g (Approx.) |
|
Brushless DC Motor-Typical Application Home Application: White Goods, Small Appliance, Fanner, Coffee Machine, Milk Tea Machine Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine Industry Equipment: Pump, Portable Screwdriver, Small Compressor Business Equipment: Printer, Copier, Projector, ATM, Vending Machine Personal Care: Hair Dryer, Electric Shaver, Massager |
||
| Model | Voltage(V) | No Load | Rated Load | Stall | ||||||
| Operating Range | Rated | Speed (rpm) | Current (A) | Torque (g.cm) | Speed (rpm) | Current (A) | Output P. (W) | Torque (g.cm) | Current (A) | |
| BL4235-V1 | 8~26 | 12 | 2860 | 0.21 | 410.2008 | 2050 | 1.16 | 8.62 | 1438.764 | 2.5 |
| BL4235-V2 | 8~26 | 24 | 6370 | 0.3 | 357.14 | 5100 | 1.17 | 18.72 | 1793.863 | 2.5 |
| BL4235-V3 | 8~26 | 24 | 9400 | 0.53 | 184.1822 | 8530 | 1.16 | 16.12 | 1988.76 | 2.5 |
| BL4235-V4 | 8~26 | 24 | 5539 | 0.25 | 561.5261 | 4393 | 1.41 | 25.31 | 2696.917 | 2.5 |
| BL4235-V5 | 8~26 | 24 | 8455 | 0.33 | 408.16 | 7580 | 1.64 | 31.75 | 3946.907 | 2.5 |
| BL4260-V1 | 8~26 | 12 | 4590 | 0.28 | 459.18 | 3500 | 1.88 | 16.54 | 1940.801 | 3 |
| BL4260-V2 | 8~26 | 24 | 4260 | 0.26 | 969.9922 | 3270 | 1.85 | 32.58 | 4175.477 | 3 |
| BL4260-V3 | 8~26 | 24 | 4046 | 0.24 | 612.6482 | 3342 | 1.21 | 21.01 | 3516.298 | 2.5 |
| BL4275-V1 | 8~26 | 12 | 2511 | 0.43 | 1101.012 | 1310 | 2.38 | 14.8 | 2265.288 | 5 |
| BL4275-V2 | 8~26 | 12 | 2813 | 0.34 | 867.34 | 2292 | 2.29 | 20.4 | 4673.432 | 5 |
| BL4275-V3 | 8~26 | 18 | 3790 | 0.32 | 857.3401 | 2930 | 2 | 25.8 | 3755.072 | 5 |
| BL4275-V4 | 8~26 | 24 | 5050 | 0.42 | 1108.154 | 3900 | 2.62 | 44.3 | 3877.52 | 5 |
| Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-50000hrs |
|
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement. |
| BL4235 Data: |
 |
| BL4260 Data |
 |
| BL4275 Data |
 |
