Ø 36 mm

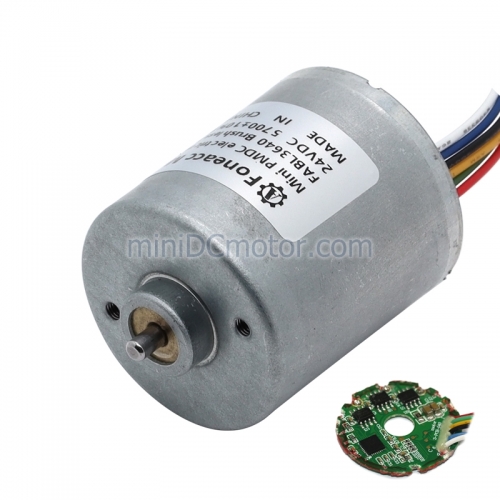

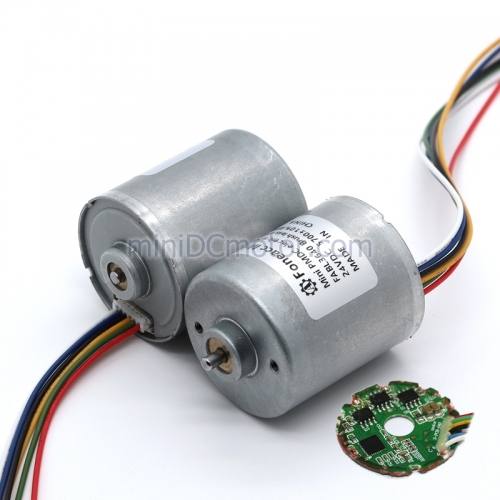

BL3640 B3640M diameter 36mm bldc inner rotor brushless dc motor

Item No.: BL3640 B3640M
Specifications:

Size: φ36.0* 40.0mm
Built-in driver
PWM pulse wide speed range
Clockwise/counter-clockwise rotation
FG speed feedback signal
Low EMC
Low noise
Long life: 20000hrs Min.
Over-current protection
Over-voltage protection
Under-volt
  • motor case diameter: 36 mm
  • motor case length: 40 mm
  • motor case shape: round motor shell
  • brush type: brushless
  • motor type: single bldc motor
  • bearing type: bushing/ball bearing
  • manufacturer: FONEACC MOTOR
  • Description

    BL3640 B3640M diameter 36mm bldc inner rotor brushless dc motor

    Specifications:

    Size: φ36.0* 40.0mm
    Built-in driver
    PWM pulse wide speed range
    Clockwise/counter-clockwise rotation
    FG speed feedback signal
    Low EMC
    Low noise
    Long life: 20000hrs Min.
    Over-current protection
    Over-voltage protection
    Under-voltage protection
    OEM and ODM orders are welcome
    The design can be customized

    Applications:
    Personal care, home application, industry apparatus, business equipment, and medical apparatus

    Samples can be sent on your request.
    OD 36mm series BLDC brushless dc motor

    BL3626,BL3630,BL3640,

    BL3650, BL3657



    Output Power: 2W~90W Weight: 95g ~ 190g (Approx.)

    Brushless DC Motor-Typical Application

    Home Application: White Goods, Small Appliance, Fanner, Coffee Machine, Milk   Tea Machine

    Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer, centrifugal   Machine

    Industry Equipment: Pump, Portable Screwdriver, Small Compressor

    Business Equipment: Printer, Copier, Projector, ATM, Vending Machine

    Personal Care: Hair Dryer, Electric Shaver, Massager

    Model Voltage(V) No Load Rated Load Stall
    Operating Range Rated Speed (rpm) Current (A) Torque (g.cm) Speed (rpm) Current (A) Output P. (W) Torque (g.cm) Current (A)
    BL3626-V1 8~16V 12 6027 0.15 96.1 4882 0.638 4.814 506 2.721
    BL3626-V2 8~26V 18 7435 0.124 91 6022 0.504 5.621 478.9 2.121
    BL3626-V3 8~26V 24 8927 0.111 91.3 7231 0.456 6.774 480.8 1.926
    BL3630-V1 8~16V 12 5817 0.249 138.1 4882 0.638 6.507 657.4 3.456
    BL3630-V2 8~26V 18 7526 0.209 183 6171 0.957 11.584 1016.8 4.366
    BL3630-V3 8~26V 24 8872 0.184 191.3 7364 0.872 14.451 1125.6 4.234
    BL3640-V1 8~16V 12 4769 0.16 146.7 4006 0.818 6.028 917 4.271
    BL3640-V2 8~26V 18 7068 0.19 211.93 6008 1.071 13.055 1412.4 6.066
    BL3640-V3 8~26V 24 8235 0.247 288.2 6835 1.186 20.205 1695.4 5.769
    BL3650-S01 8~26V 12 5300 0.46 239.794 4600 1.53 11.35 793.8712 2.5
    BL3650-S02 8~26V 24 13800 0.32 306.12 11360 1.99 35.69 1058.155 3
    BL3650-S03 8~26V 24 4327 0.18 459.18 3714 1.01 17.49 3232.627 2.5
    BL3650-S04 8~26V 24 19400 0.44 183.672 18080 1.84 34.09 774.4836 3
    BL3650-S05 8~26V 24 28518 0.64 32.37 23172 4.73 78.56 171.42 6
    BL3657-S01 8~16V 12 4154 0.19 196.9 3448 0.904 6.963 1158.3 4.405
    BL3657-S02 8~26V 24 6382 0.22 267 5425 1.174 14.85 1779.7 6.604
    BL3657-S03 8~26V 24 8610 0.28 384.6 7230 1.572 28.53 2403.9 8.342



    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-50000hrs

    Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    BL3626 Data:
    BL3630 Data
    BL3640 Data
    BL3650 Data
    BL3657 Data

    6 wires built-in driver interface instruction.webp
