Ø 28 mm

BL2838 B2838M 28mm inner rotor bldc brushless dc motor

Item No.: BL2838 B2838M
Specifications:

Size: φ28.0* 38.0mm
Built-in driver
PWM pulse wide speed range
Clockwise/counter-clockwise rotation
FG speed feedback signal
Low EMC
Low noise
Long life: 20000hrs Min.
Over-current protection
Over-voltage protection
Under-volt
  • motor case diameter: 28 mm
  • motor case length: 38 mm
  • motor case shape: round motor shell
  • brush type: brushless
  • motor type: single bldc motor
  • bearing type: bushing/ball bearing
  • manufacturer: FONEACC MOTOR
  • Description

    BL2838 B2838M 28mm inner rotor bldc brushless dc motor

    Specifications:

    Size: φ28.0* 38.0mm
    Built-in driver
    PWM pulse wide speed range
    Clockwise/counter-clockwise rotation
    FG speed feedback signal
    Low EMC
    Low noise
    Long life: 20000hrs Min.
    Over-current protection
    Over-voltage protection
    Under-voltage protection
    OEM and ODM orders are welcome
    The design can be customized

    Applications:

    Personal care, home application, industry apparatus, business equipment, and medical apparatus

    Samples can be sent on your request.

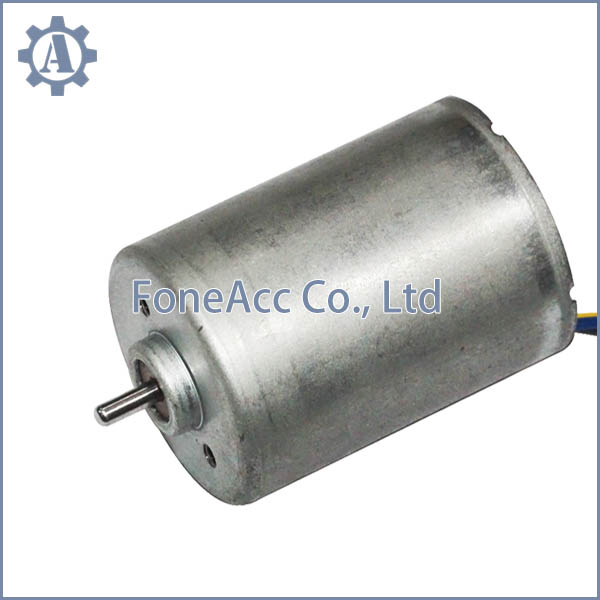

    Images of bl2838 bldc motor:



    BL2838 Output Power: 1W~30W Weight: 75g (Approx.)
    Brushless DC Motor-Typical Application

    Home Application: White Goods, Small Appliance, Fanner, Electric Curtain

    Medical Apparatus: Medical Pump, Blood Pressure Meter, Surgery Tools, Medical Stirrer, centrifugal machine

    Industry Equipment: Electric Valve, Portable Screwdriver, Air Pump, Water Pump, Vacuum Pump

    Business Equipment: Printer, Copier, Projector, Scanner, Cash Register

    Personal Care: Hair Dryer, Electric Shaver, Massager

    Model Voltage(V) No Load Rated Load Stall
    Operating Range Rated Speed (rpm) Current (A) Torque (mNm) Speed (rpm) Current (A) Output P. (W) Torque (mNm) Current (A)
    BL2838-V1 6~12 7.4 4400 0.15 7 4100 0.68 3 38 1.6
    BL2838-V2 8~26 12 3900 0.09 12 3200 0.58 4.1 69.4 1.6
    BL2838-V3 8~26 24 7640 0.15 18 4700 0.9 9 48 2.5
    BL2838-V4 8~26 24 9400 0.18 24 5800 1.38 14.6 60 2.5



    Motor drawing:





    BL2838-V2                       12V BL2838-V4                        24V


    Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized.

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-30000hrs

    5 wires built-in driver interface instruction.webp
