Ø 37 mm

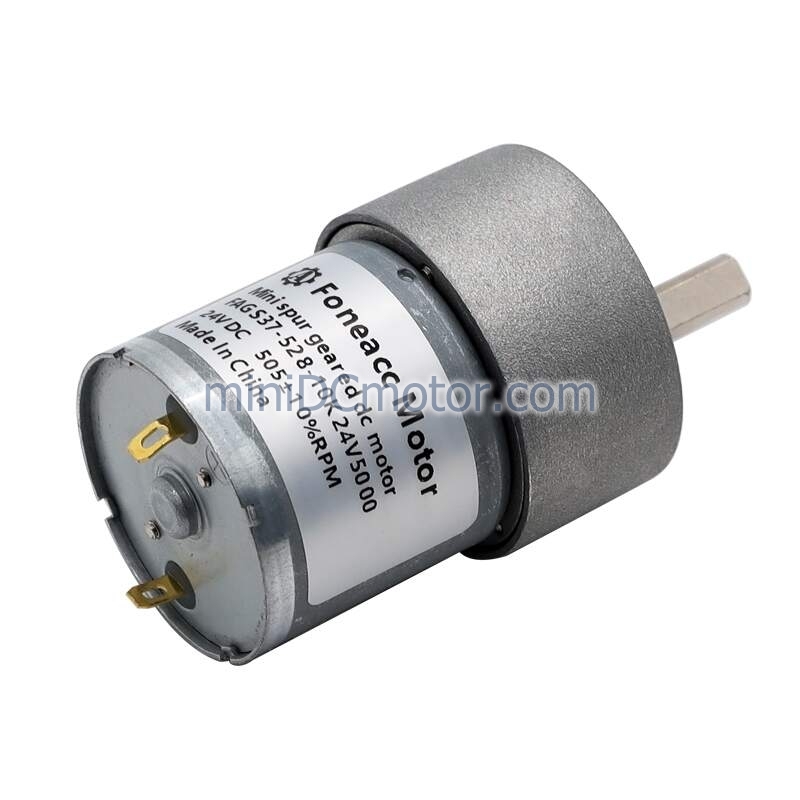

GS37-528 37 mm small spur gearhead dc electric motor

Item No.: GS37-528
GS37-528, 37 mm small spur gearhead dc electric motor | FONEACC MOTOR, custom specs service available.
  • motor case diameter: 35.8 mm
  • motor case shape: l
  • brush type: carbon brush/metal brush
  • motor type: miniature gearbox permanent magnet dc electric motor
  • gearbox type: metal spur gear reducer
  • driveshaft shape: D, O, knurling, screw thread, Customization
  • bearing type: bushing/ball bearing
  • manufacturer: FONEACC MOTOR
  • Description

    The datasheet of GS37-528 is as below:

    gs37-528 37 mm small spur gearhead dc electric motor.webp

    Notice: Data in this typical specification sheet are for certain customers. The power voltage, rated torque, speed, current, power, and driveshaft extension can be customized to meet customer-specific requirements.



    Tables for clear view:

    data table of GS37-528 spur gearhead dc electric motor

    Voltage
    number of stages 2 3 4 5 6
    Gear Ratio 10 16.7 23.3 30 36 50 60 70 90 110 121 150 180 210 270 350 405 450 490 540 630 810
    12V kgf.cm
    Rated Torque
    0.37 0.57 0.79 1.02 1.22 1.54 1.85 2.16 2.78 3.09 3.40 4.21 5.05 5.90 7.58 8.94 10.35 11.50 12.52 13.80 16.10 20.70
    RPM
    Rated Speed
    560 335 240 187 156 112 93 80 62 51 46 37 31 27 21 16 14 12 11 10 9 7
    kgf.cm
    Max Allowable
    Moment Torque
    30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0
    RPM
    No Load Speed
    700 419 300 233 194 140 117 100 78 64 58 47 39 33 26 20 17 16 14 13 11 9
    24V kgf.cm
    Rated Torque
    0.41 0.63 0.88 1.13 1.36 1.71 2.06 2.40 3.09 3.43 3.78 4.68 5.62 6.55 8.42 9.94 11.50 12.78 13.91 15.33 17.89 23.00
    RPM
    Rated Speed
    530 317 227 177 147 106 88 76 59 48 44 35 29 25 20 15 13 12 11 10 8 7
    kgf.cm
    Max Allowable
    Moment Torque
    30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0
    RPM
    No Load Speed
    670.0 401.2 287.6 223.3 186.1 134.0 111.7 95.7 74.4 60.9 55.4 44.7 37.2 31.9 24.8 19.1 16.5 14.9 13.7 12.4 10.6 8.3

    single motor RS-528 dc electric motor specs
    Model Rated Voltage No Load RATED LOAD Stall
    Speed Current Speed Current Torque Output Efficiency Torque Current
    VDC RPM A RPM A gf.cm W % gf.cm A
    RS-528CH-18250 12 7000 0.06 5600 0.32 45 2.587 67.4 225 1.36
    RS-528CH-17300 24 6700 0.03 5300 0.2 50 2.721 56.7 239 0.84

    The whole small spur gear dc electric motor family is as below:

    OD Ø10 mm small spur gear dc electric motor:
    GM10-M10 small spur geared dc electric motor.webp GM10-M20 small dc electric motor gear reducer mounted.webp
    OD Ø12 mm small spur gear dc electric motor:
    GM12-N20 small spur geared dc electric motor.webp GM12-N20-EN small spur geared dc electric motor.webp GM12-N30 small spur geared dc electric motor.webp
    OD Ø13 mm small spur gear dc electric motor:
    GM13-030 small spur geared dc electric motor.jpg GM13-050 small spur geared dc electric motor.webp
    OD Ø16 mm small spur gear dc electric motor:
    GM16-030 small spur geared dc electric motor.webp GM16-050 small spur geared dc electric motor.webp
    OD Ø20 mm small spur gear dc electric motor:
    GM20-130 small spur geared dc electric motor.webp GM20-180 small spur geared dc electric motor.webp
    OD Ø24 mm small spur gear dc electric motor:
    GMR24-N20 small spur geared dc electric motor.webp
    OD Ø25 mm small spur gear dc electric motor:
    GM25-370 small spur geared dc electric motor.webp GM25-2430 small spur geared dc electric motor.webp
    OD Ø37 mm small spur gear dc electric motor:
    GS37-520 small spur geared dc electric motor.webp GS37-528 small spur geared dc electric motor.webp GS37-555 small spur geared dc electric motor.webp



    Small spur gear dc motor applications

    Sweeping robot, CCTV camera, electric lock, electrical curtain, printer, atm, copiers and scanners, vending machines, hand blenders, mixers, coffee machines, fryers, projectors, grinders, polishers, trimmers, amusement machine, financial machine, peristaltic pump, medical apparatus and instruments, automotive, communications equipment, smart home, intelligent security, household appliances, electric kitchen equipment, machinery and electronics, and other high-end transmission structures



    Why choose us:

    ***  Experienced manufacturer  ***
    We have more than 15 years of experience in producing and exporting dc gear motor industry all over the world.

    ***  Motor custom  ***
    We accept OEM or ODM orders.

    ***  Samples processing  ***
    We have a sample workshop specialized in processing samples.
    The lead time of samples is usually about 7days, some hot-selling models are about 15 days.

    ***  Capability  ***
    Our monthly capacity is more than 200000pcs.
    We have many R&D engineers for professional advice and solutions.

    ***  Fast delivery  ***
    According to different quantities and DC motor/gear motor models, 15 to 40 days fast delivery time,
    even during the COVID19 pandemic, we have a 99% on-time delivery rate.

    ***  Worry-free quality  ***
    Our products are widely satisfied among customers all over the world with reasonable price and good quality.
    Our warranty period is one year. And our comprehensive non-performing rate is less than 1‰. For these defective dc motors, we will provide replenishment in the next batch of orders.
