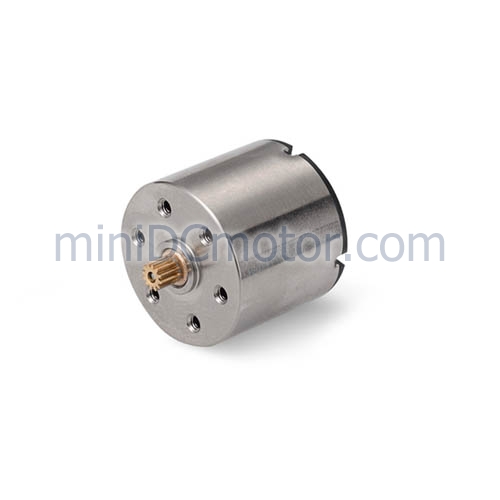

1715R 17 mm micro coreless brush dc electric motor

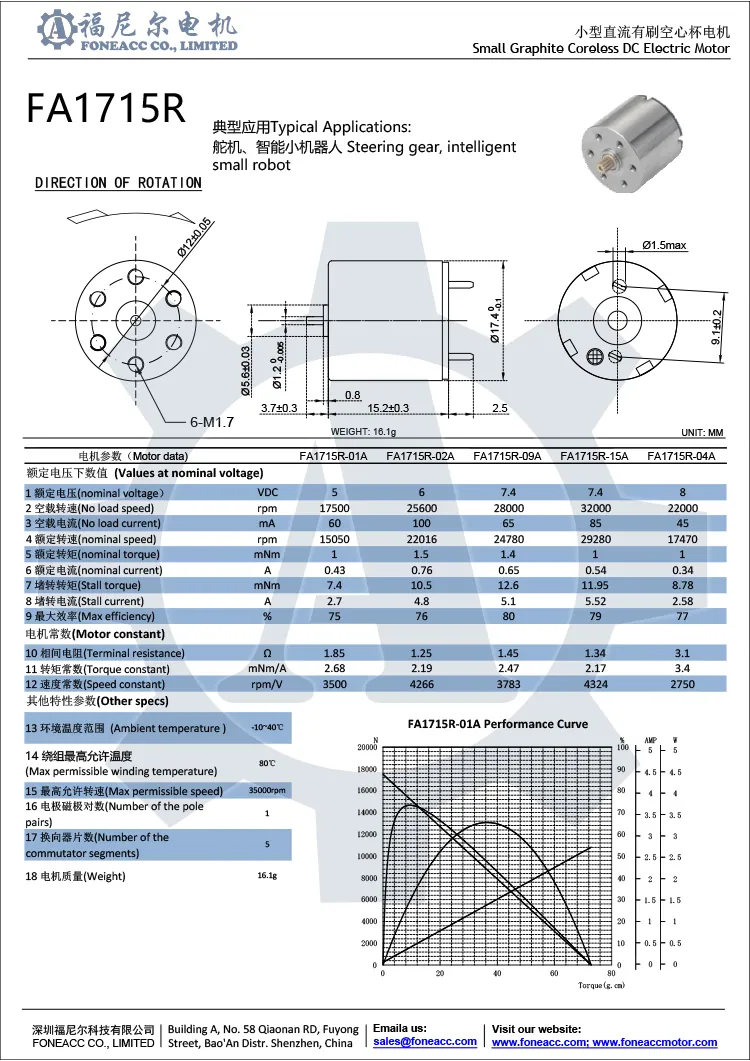

The datasheet of 1715R is as below:
Notice: Data in this typical specification sheet are for certain customers. The power voltage, rated torque, speed, current, power, and driveshaft extension can be customized to meet customer-specific requirements.
Tables for clear view:
| Motor data) | 1715R-01A | 1715R-02A | 1715R-09A | 1715R-15A | 1715R-04A | |
| (Values at nominal voltage) | ||||||
| 1 (Nominal voltage | VDC | 5 | 6 | 7.4 | 7.4 | 8 |
| 2 (No load speed) | rpm | 17500 | 25600 | 28000 | 32000 | 22000 |
| 3 (No load current) | mA | 60 | 100 | 65 | 85 | 45 |
| 4 (Nominal speed) | rpm | 15050 | 22016 | 24780 | 29280 | 17470 |
| 5 (Nominal torque) | mNm | 1 | 1.5 | 1.4 | 1 | 1 |
| 6 (Nominal current) | A | 0.43 | 0.76 | 0.65 | 0.54 | 0.34 |
| 7 (Stall torque) | mNm | 7.4 | 10.5 | 12.6 | 11.95 | 8.78 |
| 8 (Stall current) | A | 2.7 | 4.8 | 5.1 | 5.52 | 2.58 |
| 9 (Max efficiency) | % | 75 | 76 | 80 | 79 | 77 |
| (Motor constant) | ||||||
| 10 (Terminal resistance) | Ω | 1.85 | 1.25 | 1.45 | 1.34 | 3.1 |
| 11 (Torque constant) | mNm/A | 2.68 | 2.19 | 2.47 | 2.17 | 3.4 |
| 12 (Speed constant) | rpm/V | 3500 | 4266 | 3783 | 4324 | 2750 |
| (Other specs) | ||||||
| 13 (Ambient temperature ) | -10~40 °C | |||||
| 14 (Max permissible winding temperature) | 80 °C | |||||
| 15 (Max permissible speed) | 35000rpm | |||||
| 16 (Number of the pole pairs) | 1 | |||||
| 17 (Number of the commutator segments) | 5 | |||||
| 18 (Weight) | 16.1g | |||||
